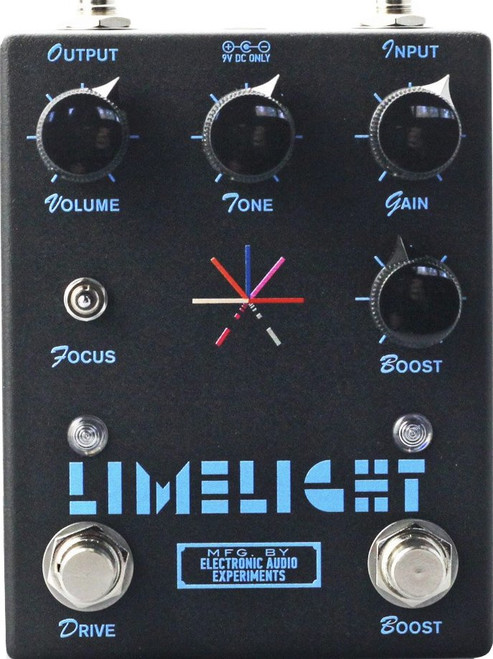

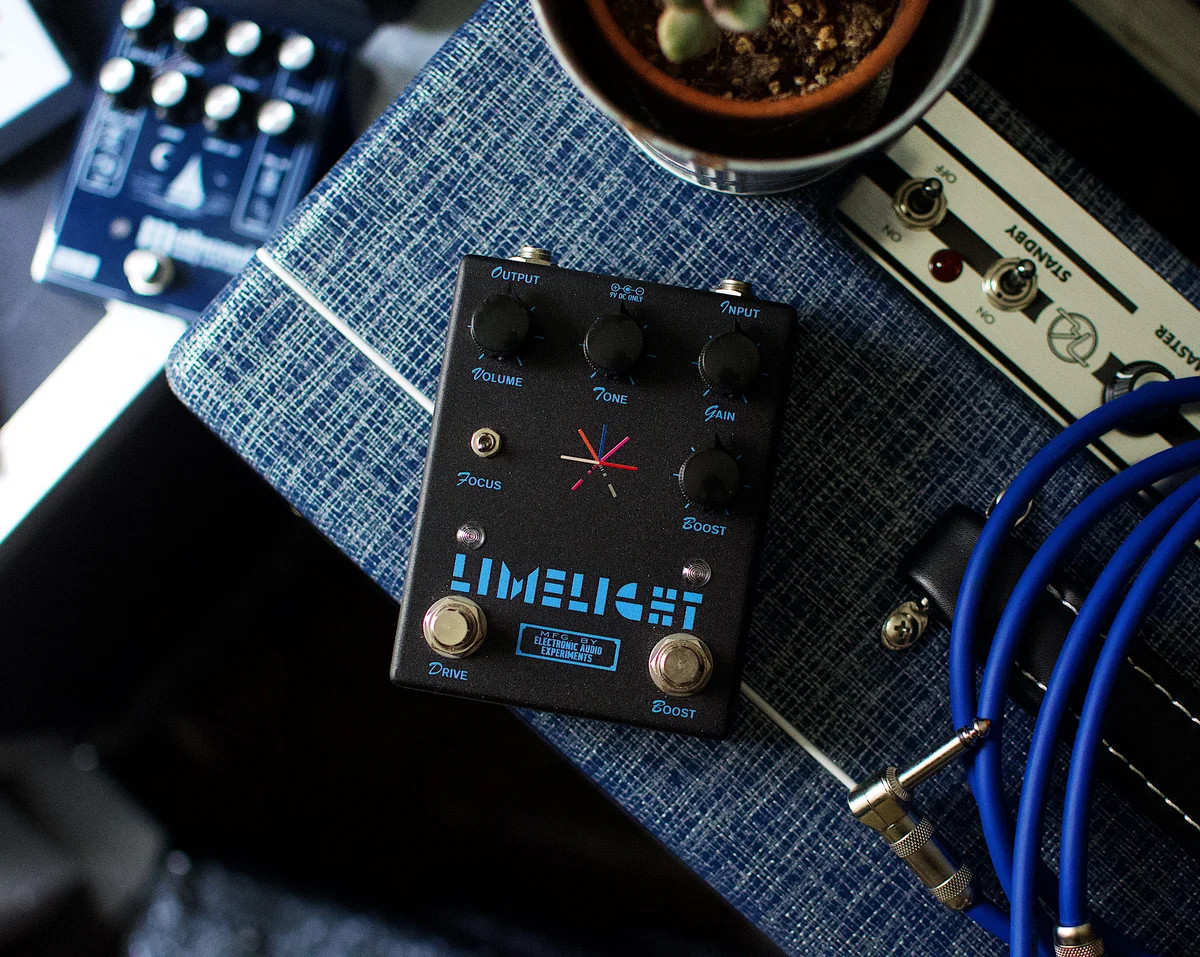

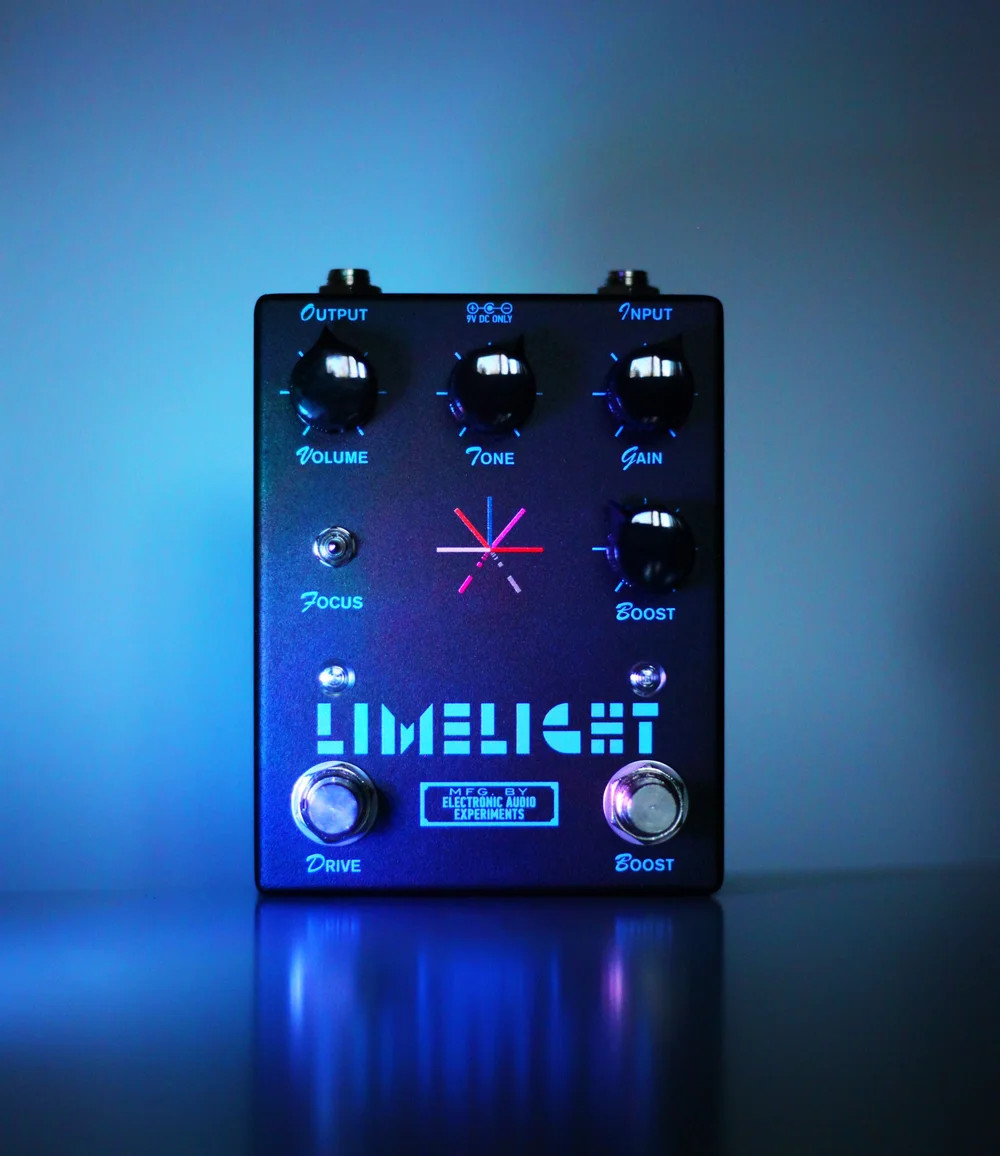

Electronic Audio Experiments Limelight Dual Overdrive Pedal | No Limit Guitar Co, Idaho Falls
The Electronic Audio Experiments Limelight dual-channel overdrive pedal delivers distinctive bright, articulate tones developed in collaboration with post-hardcore band Touché Amoré. This versatile drive pedal seamlessly transitions from crystalline clean passages to aggressive, saturated distortion while maintaining exceptional note clarity. Punk, post-hardcore, and alternative rock guitarists seeking expressive overdrive with superior articulation will appreciate the Limelight's wide gain range and independent boost circuit.
Product Overview
The Limelight features two independent circuits—a clean boost channel and a sophisticated op-amp overdrive section—each with dedicated footswitches for maximum flexibility. The overdrive circuit draws inspiration from the classic "breaker" lineage but incorporates significant refinements for enhanced articulation and dramatically expanded gain range. Electronic Audio Experiments' collaboration with guitarists Nick Steinhardt and Clayton Stevens resulted in a pedal that captures equal parts aggression and chime.
The overdrive section delivers approximately 50dB of gain through simultaneous control of two cascaded gain stages, with a natural midrange boost that develops as you increase the Gain control. The innovative Focus control adjusts low-end response in the drive circuit, allowing players to dial in everything from tight, cutting midrange tones to fuller, warmer sounds. This variable low-cut filter ensures the Limelight adapts to different guitars, amplifiers, and musical contexts.
The independent boost channel provides up to 21dB of pristine clean gain, perfect for pushing your amplifier into natural breakup or driving the overdrive section into heavier distortion territories. Relay-based true bypass switching on both channels ensures silent, reliable operation that defaults to bypass if power is lost. The pedal's vertical portrait orientation maximizes pedalboard real estate while maintaining intuitive control access.
Ideal For
- Post-hardcore and punk guitarists requiring dynamic overdrive that cuts through aggressive band mixes
- Alternative and indie rock players seeking versatile drive tones from clean boost to heavy distortion
- Studio musicians needing articulate overdrive that maintains clarity during fast, complex riffing
- Touring artists who demand reliable dual-channel drive with independent switching for live performances
- Metal and progressive players wanting surgical midrange control for modern, aggressive tones
Key Features
Dual Independent Channels with Relay Switching
Two completely separate circuits—clean boost and overdrive—each with dedicated relay-based true bypass footswitches provide unmatched versatility. Stack the boost into the drive for massive gain, use them independently for two distinct tones, or engage the boost alone for clean volume lift and amp-pushing capabilities.
Wide-Range Op-Amp Overdrive Circuit
The refined "breaker"-inspired overdrive section delivers approximately 50dB of gain across two cascaded stages, far exceeding traditional single-stage designs. This extended range covers everything from subtle edge-of-breakup grit to massive, saturated distortion while maintaining the bright, articulate character that defines the Limelight's voice.
Variable Focus Control
The innovative Focus knob adjusts low-end response through a variable low-cut filter in the drive section, allowing precise control over midrange presence and chime. Dial back for tighter, cutting leads that slice through dense mixes, or increase for warmer, fuller rhythm tones with enhanced low-frequency punch.
Natural Midrange Boost Architecture
As you increase the Gain control, the circuit introduces a musical midrange boost that enhances presence and attack without sacrificing tonal balance. This natural EQ shift ensures your notes remain defined and articulate even at extreme gain settings, making fast alternate picking and complex chord work effortlessly clear.
Professional-Grade Construction
Portrait-oriented enclosure design maximizes pedalboard efficiency while the relay switching system eliminates mechanical wear and provides silent operation. The pedal's reverse polarity protection and power-loss bypass default ensure your signal path stays protected, while the 500kΩ input impedance preserves your guitar's natural tone.
What's Included
- Electronic Audio Experiments Limelight Dual Overdrive Pedal
- Manufacturer's warranty
- Power adapter not included (requires regulated 9V DC, center negative, 100mA minimum)
Technical Specifications
| Specification | Details |
|---|---|
| Bypass | Independent relay switching with true bypass (defaults to bypass on power loss) |
| Input Impedance | 500kΩ @ 1kHz (boost and drive) |
| Output Impedance | 1kΩ (boost), <5kΩ (drive) @ 1kHz |
| Power Requirements | 9V DC, 2.1mm center negative barrel |
| Current Draw | 80mA with both channels engaged (100mA minimum PSU recommended) |
| Controls | Boost, Gain, Tone, Volume, Focus |
| Footswitches | Left: Drive circuit, Right: Boost circuit |
| Gain Range | Approximately 50dB maximum (drive), 0-21dB (boost) |
| Orientation | Portrait (vertical) format |
| Protection | Reverse polarity protection |
Get Your Hands on This Overdrive Pedal Today
Experience the aggressive clarity and versatile gain range of the Limelight at No Limit Guitar Co in Idaho Falls, where you can test this dual-channel drive pedal through our diverse amplifier selection. Our knowledgeable staff can help you explore the full tonal palette from clean boost to saturated distortion. Visit our Idaho Falls guitar store today or contact us to add professional post-hardcore overdrive tones to your pedalboard.
