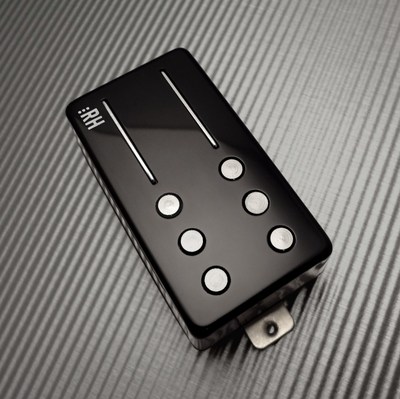

Railhammer Chisel Humbucker Neck Pickup – Black | No Limit Guitar Co, Idaho Falls

The Railhammer Chisel Neck Pickup redefines what a humbucker can do for heavy rock and metal. Aggressive and thick, yet remarkably clear and articulate, the Chisel solves one of the most persistent problems in high-output pickup design: delivering tight, defined low end on the wound strings without making the plain strings sound thin, sterile, or harsh. Rich in harmonics, touch sensitive, and armed with a cutting upper-mid attack, the Chisel is built for players who need their riffs heard loud and clear — in any tuning, through any amount of gain. Available now at No Limit Guitar Co in Idaho Falls.

Product Overview

The Railhammer Chisel's defining characteristic is its hybrid polepiece design — a deliberate engineering choice that treats the wound strings and plain strings differently because they behave differently. Thin rails sit beneath the wound strings, sensing a narrow section of string to reduce note smearing and muddiness while preserving low-end definition. Oversized 6mm diameter poles sit beneath the plain strings, sensing a wider section of string to increase thickness, sustain, and fluid tone without any thin or harsh edge. The result is a pickup that is simultaneously tight on the bottom and fat on the top — a combination that traditional humbucker designs consistently struggle to achieve.

Supporting this hybrid design is an efficient magnetic structure built around larger-than-standard rails and poles, each with a large surface area contacting the ceramic magnet beneath. This produces a strong, wide magnetic field that is exceptionally touch sensitive and responsive to playing dynamics. The field is wide enough that bending across any string — including on the pole side — produces no dead spots, maintaining consistent tone and volume through the full arc of every bend.

Construction quality is a priority throughout. Vacuum wax-potted coils, a six-screw baseplate (versus the traditional four-screw design), and non-adjustable poles eliminate internal vibration and the uncontrollable feedback and squealing it causes. With no moving parts to rattle or resonate independently, the Chisel more accurately senses string movement and translates it into a cleaner, more defined signal. Height-tapered rails — highest under the D string — address the traditionally weaker D string volume, delivering more consistent output from string to string across the full set.

Ideal For

• Heavy rock, metal, and djent players who need tight low end and clear articulation under high gain
• Drop-tuned guitarists who want defined, punchy lows without muddiness or note smearing
• Players who rely on complex chord voicings, aggressive palm muting, and fast riffing that needs to cut through the mix
• Tone-conscious musicians who want touch sensitivity and harmonic richness alongside raw output
• Guitarists upgrading neck pickups in Idaho Falls or anywhere who want a humbucker that excels clean and dirty

Key Features

Rails Under Wound Strings — Tight, Clear Low End Thin rails beneath the wound strings sense a narrow section of string, reducing the note smearing and muddiness that plague traditional high-output humbuckers. Low end is still present and powerful — it's simply more defined and less mushy. Aggressive riffs, fast passages, complex chords, and palm muting all retain clarity and cut through the mix whether you're playing clean or saturated, standard or drop-tuned.

Oversized 6mm Poles Under Plain Strings — Fat, Singing Highs Larger diameter poles beneath the plain strings sense a wider section of string, increasing thickness and sustain on the high end. Slow bends, double stops, and fast shred passages stay fluid and soulful with none of the thin, nasty harshness that can plague a pickup with too much output chasing too little string mass. The plain strings sing rather than shriek.

Efficient Magnetic Structure — Touch Sensitive, No Dead Spots The oversized rails and poles contact the ceramic magnet across a large surface area, generating a strong, wide magnetic field. This field is highly responsive to playing dynamics — dig in hard and it responds with aggression, back off and it cleans up — and it maintains consistent tone across the full arc of any bend with no dead spots, even on the pole side.

Height-Tapered Rails — Consistent String-to-String Volume The rails taper upward with the highest point positioned beneath the D string — historically the weakest-outputting string in a standard humbucker. This intentional height variation compensates for the D string's typical volume deficit, producing more even, consistent output from low E to high E without manual polepiece adjustment.

Six-Screw Baseplate and No Moving Parts A traditional humbucker baseplate uses four screws to secure the bobbins. Railhammer added two additional screws, reducing internal vibration that causes uncontrollable feedback and squealing. Combined with vacuum wax-potted coils and non-adjustable poles, the Chisel has no moving parts — excess vibration is eliminated entirely, enhancing clarity and response because the pickup components are sensing string movement, not their own resonance.

Universal Spacing The long rails and oversized poles cover a wide string spread, making the Chisel compatible with virtually any guitar body style, bridge type, or pickup routing in any position — no spacing concerns, no fitting issues.

What's Included

• Railhammer Chisel Humbucker Neck Pickup – Black (Model: CHI-N-BK)
• Compatible with: Chisel Neck, Hyper Vintage Neck, Gnarly 90 Neck, Tel 90 Neck configurations

Technical Specifications

Get the Railhammer Chisel Neck Pickup Today

The Railhammer Chisel Neck Pickup is available now at No Limit Guitar Co in Idaho Falls. Stop by to talk through your pickup upgrade with our team, or contact us with any questions about compatibility, installation, or pairing options. If clarity, aggression, and touch sensitivity in a single humbucker sounds like exactly what your guitar has been missing — this is your tool.
