The Seymour Duncan Slug Rail Humbucker is a passive bridge pickup engineered for players who demand extreme output and crushing metal tone. Combining the TB-1 '59 Screw Coil with the TB-5 Custom Slug Coil, this hybrid humbucker delivers an aggressively unique character that sets it apart from standard high-output designs. Whether you're an intermediate shredder or a seasoned death metal guitarist, the Slug Rail brings the raw power and note clarity your playing demands.
Product Overview
The Slug Rail is built around a ceramic magnet and an overwound coil configuration, producing ultrahigh output that excels in drop-tuned and extended-range playing environments. The wider string spacing design ensures that every note in a chord or fast riff rings out with definition rather than collapsing into low-end mush. Black covers with the iconic Seymour Duncan logo give it a clean, aggressive aesthetic that suits any high-gain guitar.
Tonally, the Slug Rail delivers fat lows that anchor heavy rhythm playing, while boosted midrange frequencies cut through dense, layered mixes in both live and studio settings. Sizzling highs add articulation and harmonic clarity, making it ideal for technical metal styles where note separation matters as much as sheer power. As a passive pickup, it interacts naturally with your amp's input stage and responds organically to your playing dynamics.
Four-conductor wiring opens up a range of tonal options beyond the standard humbucker configuration. Coil splitting and parallel wiring allow you to shape the Slug Rail's output for different playing contexts — from full-bore metal aggression to a tighter, more percussive split-coil tone. This versatility makes the Slug Rail a smart upgrade for guitarists looking for one pickup to cover aggressive territory from progressive metal to extreme doom.
Ideal For
- Downtuned metal and progressive players seeking ultrahigh-output bridge pickups for aggressive tone
- Death metal and djent guitarists who need tight low-end definition in drop and extended tunings
- Stage and studio performers who require a pickup that cuts through dense, high-gain mixes
- Intermediate to advanced players upgrading their guitar for heavier styles
- Guitarists interested in coil-splitting options for expanded tonal versatility
Key Features
Hybrid Coil Design The Slug Rail pairs the TB-1 '59 Screw Coil with the TB-5 Custom Slug Coil, creating a hybrid tone that blends vintage-inspired character with modern high-output aggression. This unique combination produces a more complex, nuanced response compared to standard single-design humbuckers.
Ceramic Magnet Construction Ceramic magnets deliver the tight, focused low-end and searing high-frequency response that metal playing demands. Combined with the overwound coil, they produce the massive output and harmonic density that defines the Slug Rail's character.
Wider String Spacing Designed with wider string spacing to maintain clarity across all six strings, even in aggressive downtuned playing. Chords, power chords, and fast riffs retain their definition without the low-end bloom that can obscure note clarity in high-output pickups.

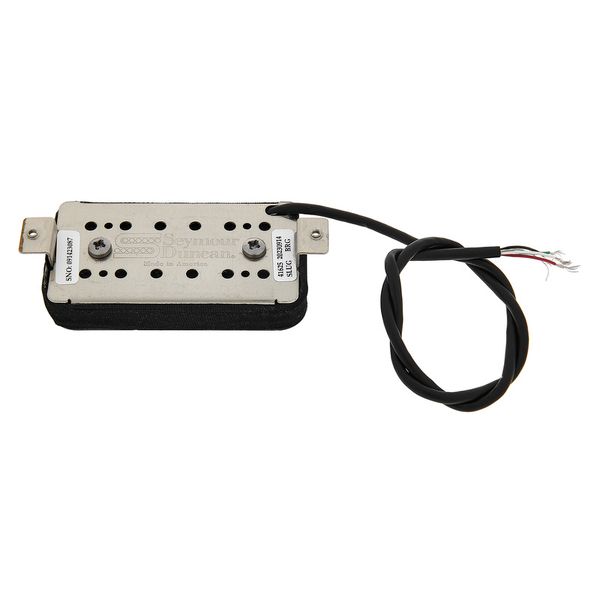

Four-Conductor Wiring Four-conductor wiring enables coil splitting, series/parallel switching, and other advanced wiring configurations. This flexibility allows you to access a broader tonal range from a single pickup, from full humbucker output to a leaner split-coil sound.
Passive High-Output Design The Slug Rail's passive construction keeps the signal path natural, giving you direct tonal control through your guitar's volume and tone controls. The ultrahigh 48k DC resistance delivers powerful output without requiring a battery or active preamp circuit.

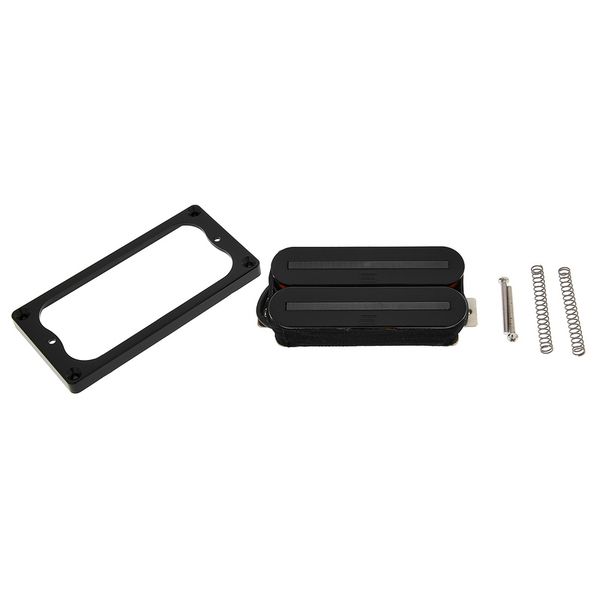

What's Included
- Seymour Duncan Slug Rail Humbucker Bridge Pickup - Black
- Four-conductor lead wire for flexible wiring options
- Seymour Duncan limited lifetime warranty
- Free standard shipping
Technical Specifications
| Specification | Details |
|---|---|
| Type | Passive Humbucker |
| Position | Bridge |
| Magnet | Ceramic |
| DC Resistance | 48k ohms |
| Coil Design | TB-1 '59 Screw Coil + TB-5 Custom Slug Coil |
| Wiring | Four-conductor |
| Covers | Black with Seymour Duncan logo |
| Output | Ultrahigh |
| String Spacing | Wider (standard humbucker routing) |
