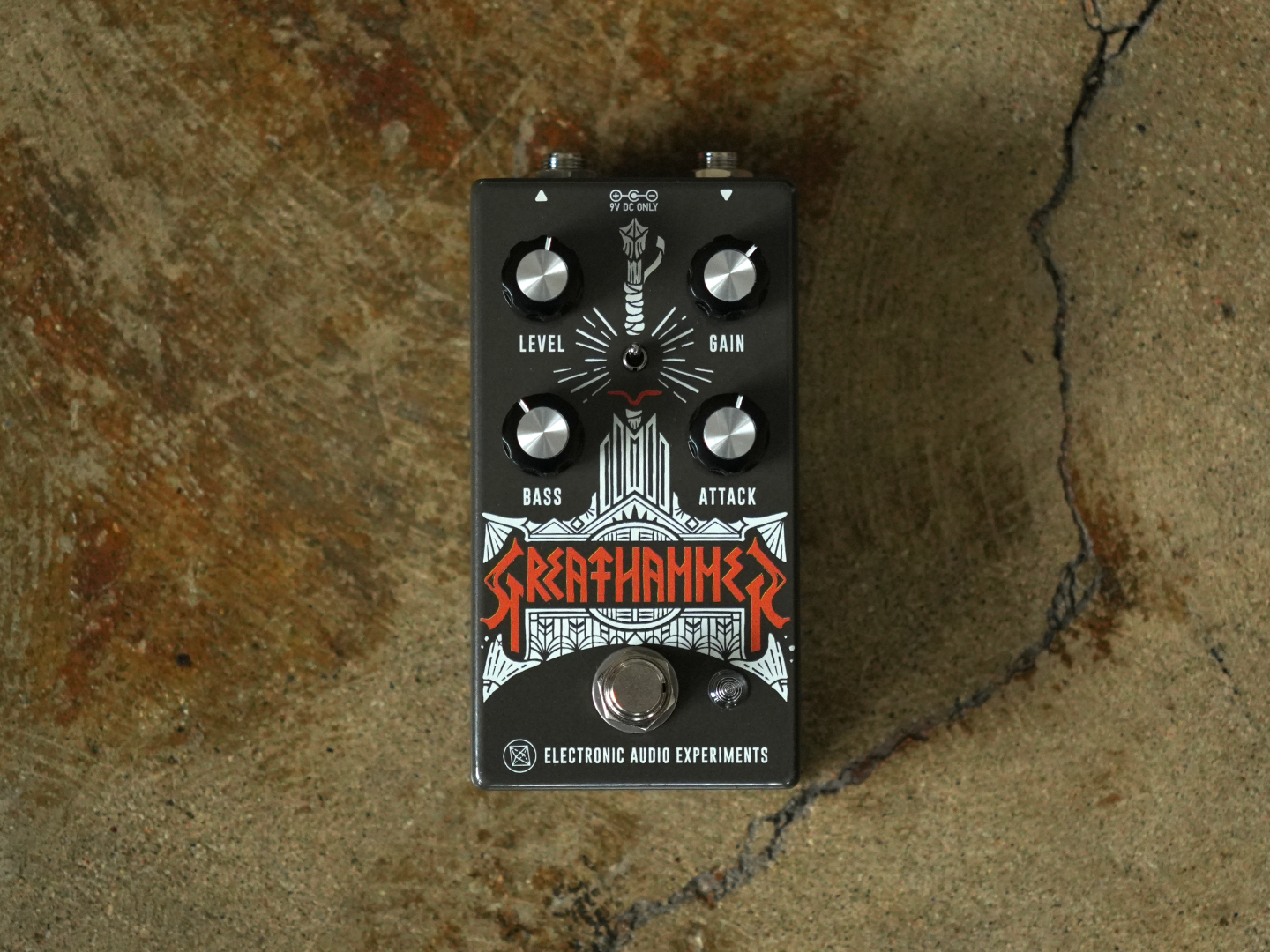

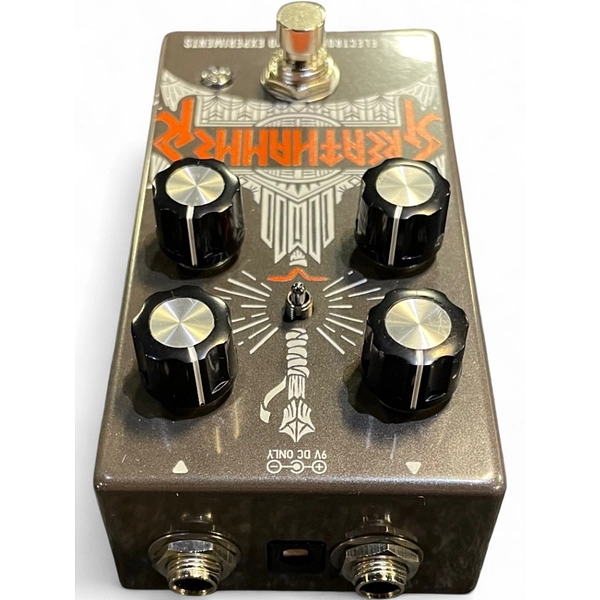

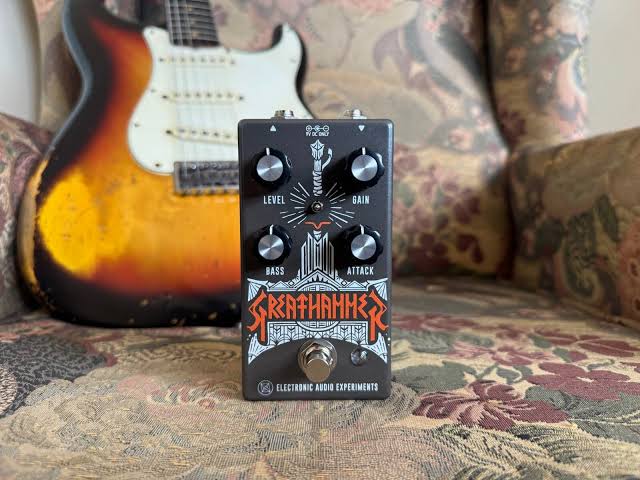

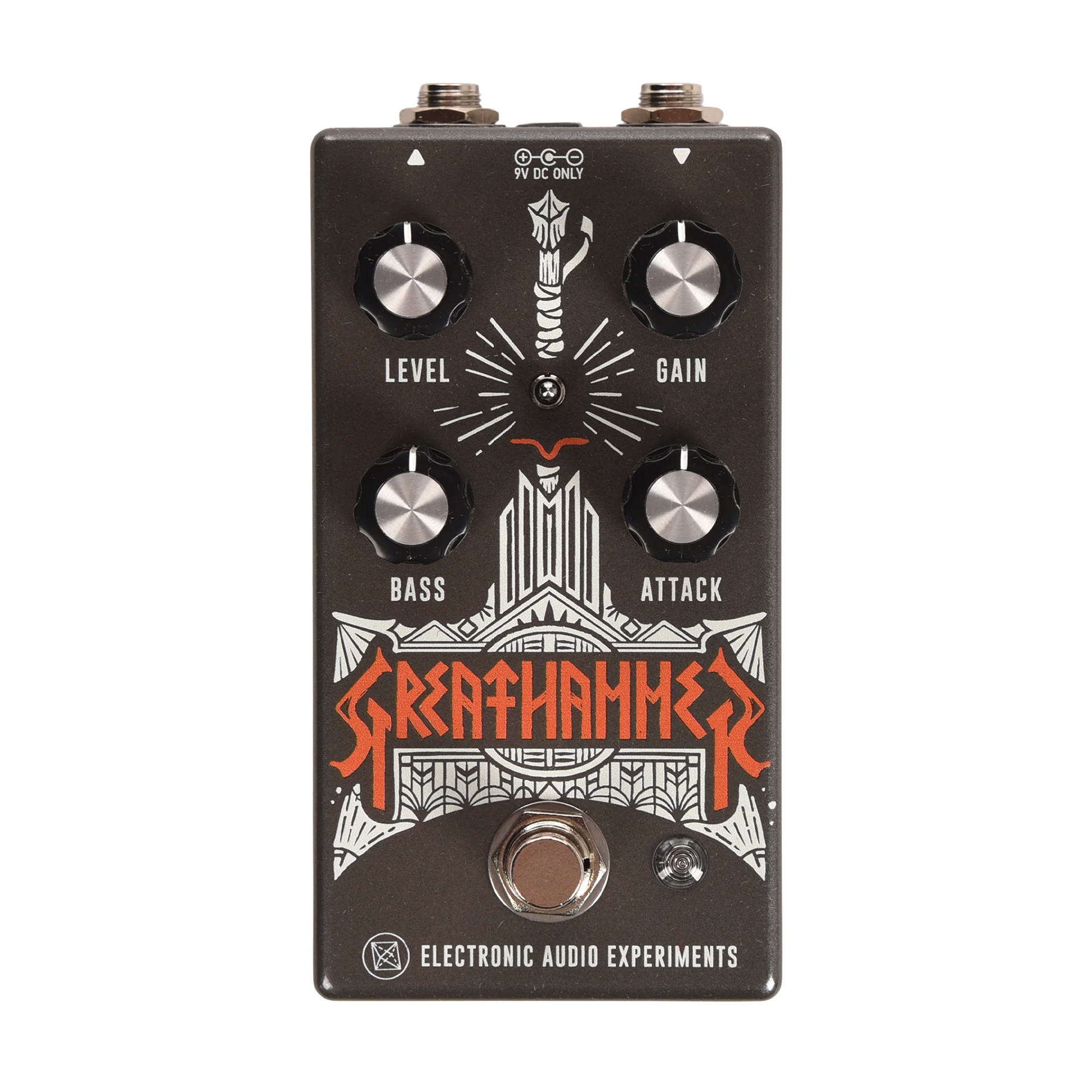

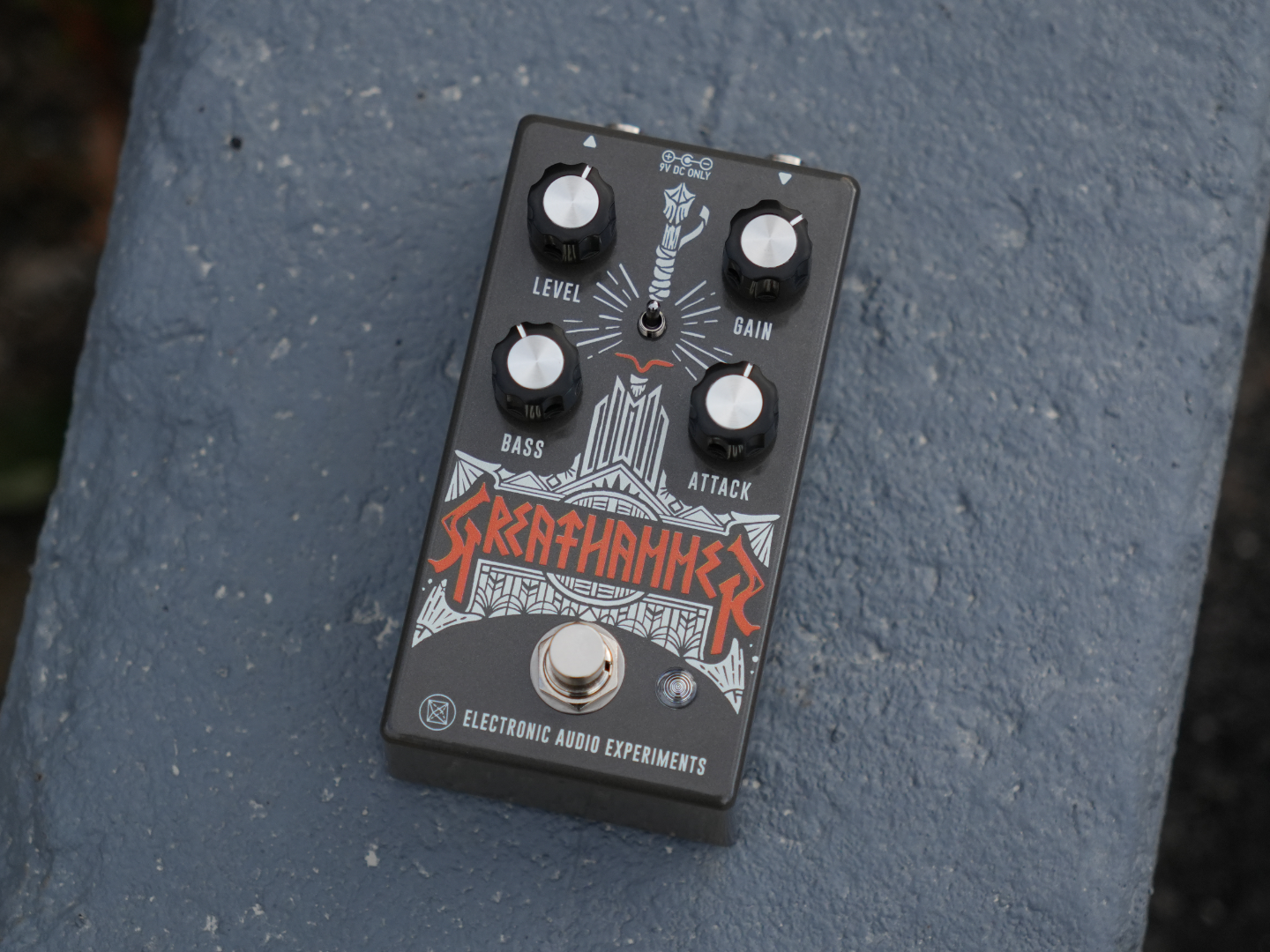

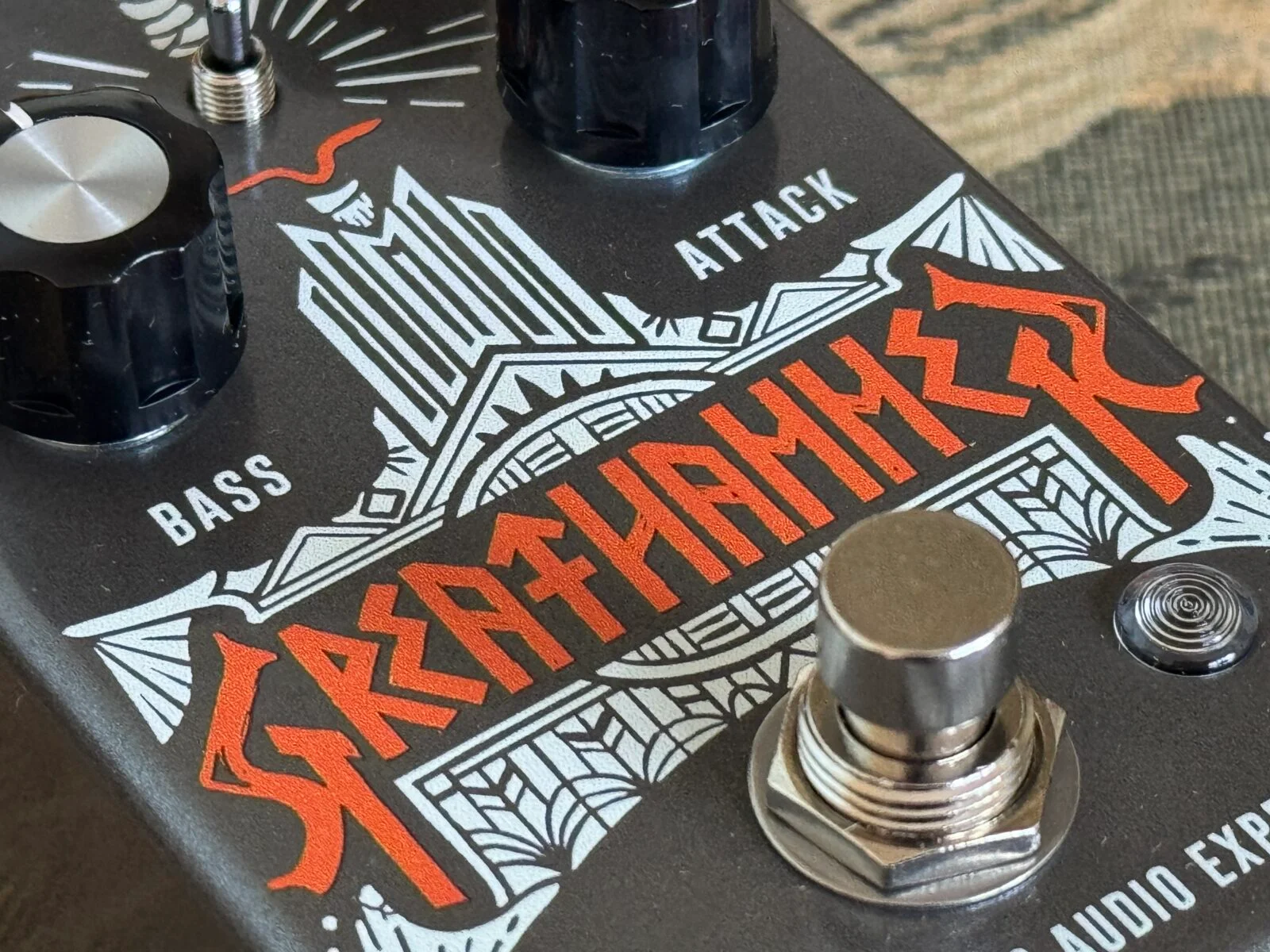

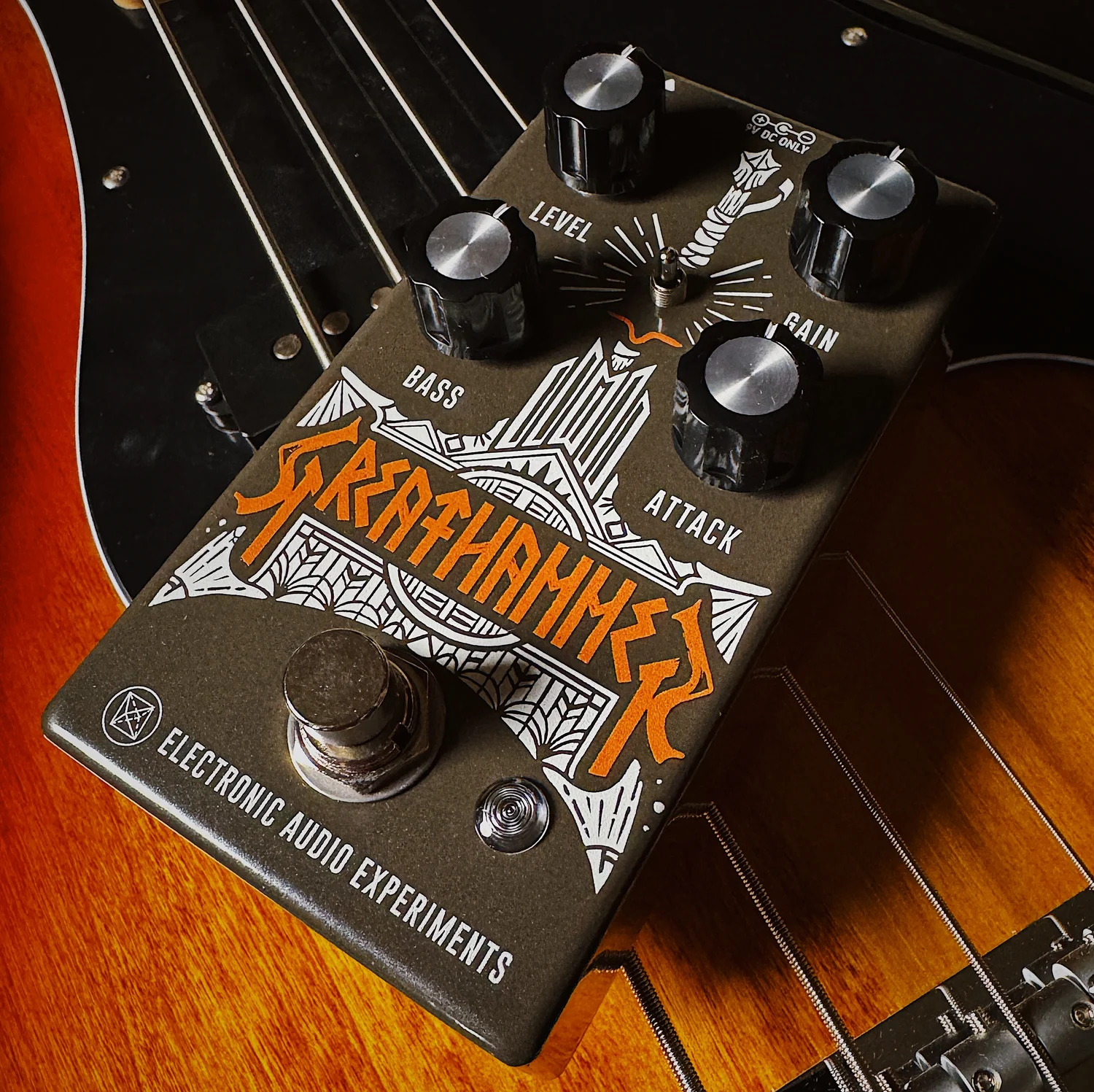

Electronic Audio Experiments Greathammer Bass Preamp Overdrive Pedal | No Limit Guitar Co, Idaho Falls
The Electronic Audio Experiments Greathammer is a bass-focused overdrive pedal that brings a distinct flavor of solid-state thunder, with a gain control spanning a full 50dB range that can stay restrained or turn genuinely rowdy. Drawing inspiration from a beloved 1970s Canadian bass amplifier while redesigning entire circuit blocks from scratch, the Greathammer preserves the classic piano-like attack that defined 90s noise rock while expanding into deeper low-frequency territory. This pedal is built for bass players who want everything from tasteful, articulate drive to filthy, down-tuned mayhem, and it works just as well on guitar.
Product Overview
The Greathammer's circuit is capable of far deeper low-frequency extension than the vintage amplifiers that inspired it, all without the unnatural, disconnected feel of a traditional clean blend. It works equally well placed in front of an amplifier or used as a dedicated preamp, giving players flexibility in how they integrate it into a rig. A Bass control offers a post-clipping low-frequency shelf boost of up to +14dB at 100Hz and below, while an Attack control shapes pre-gain tone above 1kHz, tailoring the overall drive response and sharpness of pick attack. A 3-position Notch toggle rounds out the tone-shaping section, offering a full mid cut in the center position, a moderate mid cut when set down, and flat mids when set up, giving players precise control over how aggressive or scooped the pedal's midrange sits in a mix.
Ideal For
Bass players who want solid-state overdrive with deep low-frequency extension. Musicians searching for a bass overdrive pedal with a 3-position mid cut toggle. Noise rock and down-tuned players who want piano-like attack alongside filthy, aggressive drive. Guitarists looking for a distinctive overdrive pedal originally voiced for bass. Players who want a pedal flexible enough to run in front of an amp or as a dedicated preamp.
Key Features
50dB Gain Range: The Gain control spans approximately 50dB of maximum passband gain, letting players move from clean to moderate drive to extreme, filthy overdrive.
Post-Clipping Bass Shelf Boost: The Bass control adds up to +14dB of low-frequency shelf boost at 100Hz and below, delivering deep low-end extension without an unnatural clean-blend feel.
Pre-Gain Attack Control: The Attack control adjusts frequencies above 1kHz ahead of the gain stage, tailoring the pedal's overall drive response and the sharpness of pick attack.
3-Position Notch Toggle: This mid-cut toggle offers a full mid cut, a moderate mid cut, or flat mids, giving players precise control over the pedal's midrange character.
Silent Electronic Bypass Switching: A high-headroom op amp buffer and intelligent momentary/latching footswitch behavior deliver silent, reliable bypass switching on stage.
What's Included
- Electronic Audio Experiments Greathammer bass preamp overdrive pedal
- Standard manufacturer warranty
- Free standard shipping
Technical Specifications
| Specification | Details |
|---|---|
| Pedal Type | Bass preamp overdrive |
| Level | Overall volume, capable of extremely high output |
| Gain | Clean to extreme, approximately 50dB maximum passband gain |
| Bass | Post-clipping low frequency shelf boost, up to +14dB at 100Hz and below |
| Attack | Pre-gain tone control, adjusts frequencies above 1kHz |
| Notch | 3-position toggle mid cut (full cut, moderate cut, flat) |
| Footswitch | Intelligent momentary/latching activation |
| Bypass Switching | Silent electronic switching with high-headroom op amp buffer |
| Input Impedance @ 1kHz | 1MΩ |
| Output Impedance @ 1kHz | Less than 1KΩ |
| Power | 9VDC, 2.1mm center-negative barrel; 70mA current draw |
| Power Recommendation | Regulated, isolated power supply rated for 100mA minimum; reverse polarity and over-voltage protected up to 20V; does not accept batteries |
| Warranty | Standard manufacturer warranty |
Get Your Hands on This Pedal Today
Come try the Electronic Audio Experiments Greathammer in person at No Limit Guitar Co in Idaho Falls and hear its solid-state thunder for yourself. Stop by our showroom to test the Notch toggle and Bass shelf boost, or contact us to check current availability and arrange a visit.
