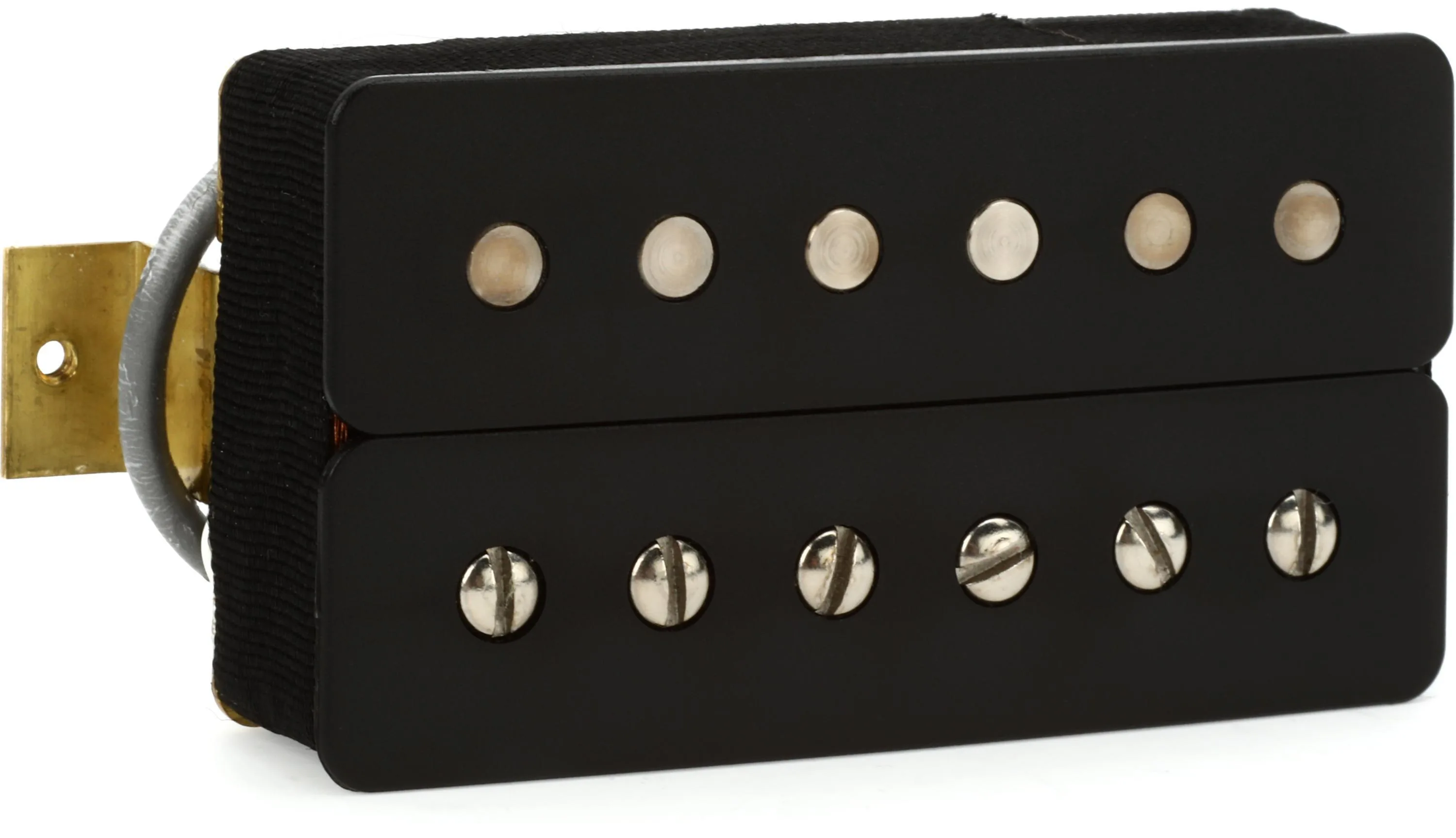

PRS 59/09 Treble Passive Humbucker Bridge Pickup - Uncovered Black | No Limit Guitar Co, Idaho Falls
The PRS 59/09 Treble Pickup brings a dose of iconic PRS tone to any electric guitar, introduced in 2009 as a custom-designed humbucker built by Paul Reed Smith to capture the sound of vintage guitars. This bridge-position humbucker delivers an articulate voice rich in harmonics, with a touch of added brightness that enhances note definition. This pickup is built for intermediate to professional guitarists looking to upgrade their bridge-position tone with a genuine PRS voicing.
Product Overview
Built around Alnico II magnets, the 59/09 Treble Pickup delivers big, vintage-inspired tone with articulate note definition and rich harmonic content, along with a touch of brightness that helps individual notes cut through a mix. It ships uncovered in black, with nickel screws and poles that give the pickup a clean, classic look on any guitar. Three-wire-plus-braided-shield wiring makes the 59/09 compatible with five-way blade or five-way rotary pickup selectors, giving players flexible switching options when installed. Paired with its neck-position 59/09 Bass counterpart or used on its own, this bridge pickup is designed to supercharge an electric guitar's overall tonal character with classic PRS clarity and punch.
Ideal For
Guitarists upgrading a bridge-position humbucker for brighter, more articulate tone. Players who want a vintage-voiced Alnico II bridge humbucker with enhanced note definition. Musicians running five-way blade or rotary pickup selectors who need compatible wiring. Rock and blues players seeking classic PRS tone with strong harmonic content. Builders and techs installing pickups on guitars that call for a soldered, uncovered humbucker.
Key Features
Alnico II Magnet Design: Alnico II magnets deliver big, vintage-inspired tone with rich harmonic content and a touch of brightness that sharpens note definition.
Uncovered Black Housing with Nickel Hardware: An uncovered black bobbin paired with nickel screws and poles gives this pickup a clean, classic appearance on any guitar.
Bright, Articulate Passive Output: With 9.3K DC resistance, the 59/09 Treble Pickup produces an articulate, slightly brighter output suited for cutting lead and rhythm tones.
Five-Way Switch Compatibility: Three-wire-plus-braided-shield wiring makes this pickup compatible with five-way blade or five-way rotary pickup selectors for flexible tonal switching.
Custom PRS Design Heritage: Designed by Paul Reed Smith and introduced in 2009, the 59/09 humbucker was built to capture the iconic tones of vintage guitars in a modern, reliable pickup.
What's Included
- PRS 59/09 Treble passive humbucker bridge pickup (Uncovered Black)
- Manufacturer warranty information
- Free standard shipping
Technical Specifications
| Specification | Details |
|---|---|
| Type | Humbucker |
| Position | Bridge |
| Active/Passive | Passive |
| Magnet Material | Alnico II |

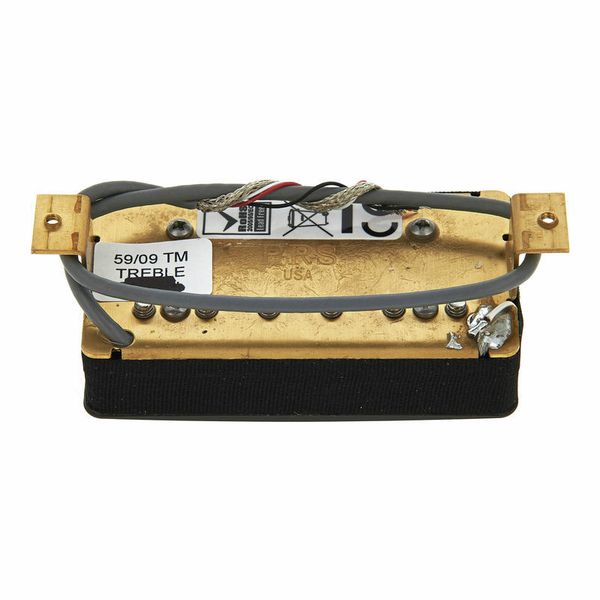

| Number of Conductors | 3-wire plus braided shield |
| DC Resistance | 9.3K |
| Connectivity | Soldered |
| Number of Strings | 6 |
| Covering | Uncovered |
| Color | Black |
| Compatible Switching | 5-way blade or 5-way rotary pickup selector |
| Manufacturer Part Number | 101721::NN-: |
Get Your Hands on This Pickup Today
Come check out the PRS 59/09 Treble Pickup in person at No Limit Guitar Co in Idaho Falls and hear its articulate, harmonic-rich tone for yourself. Stop by our showroom to talk through installation and wiring options, or contact us to check current availability.
