Introduction

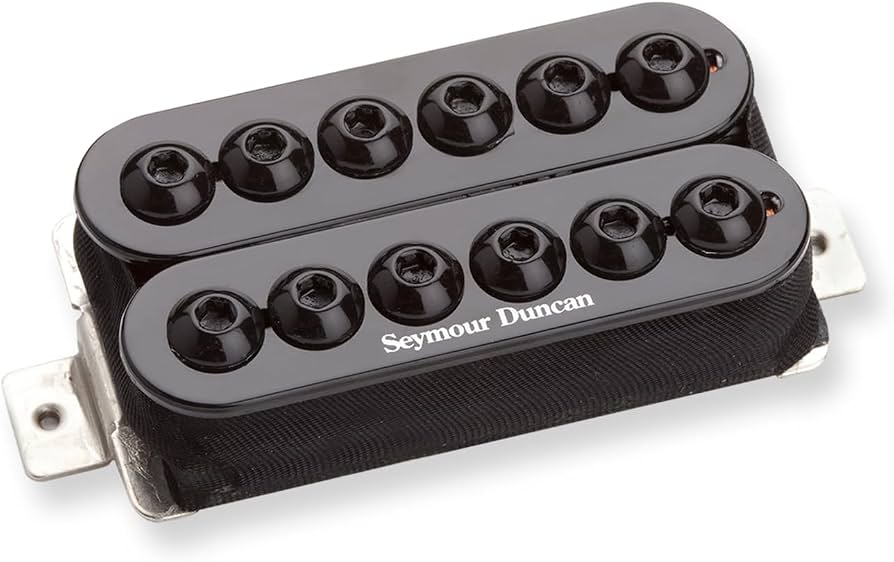

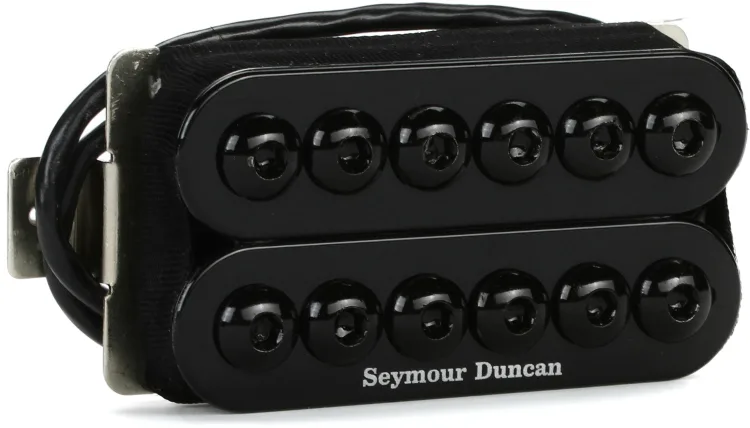

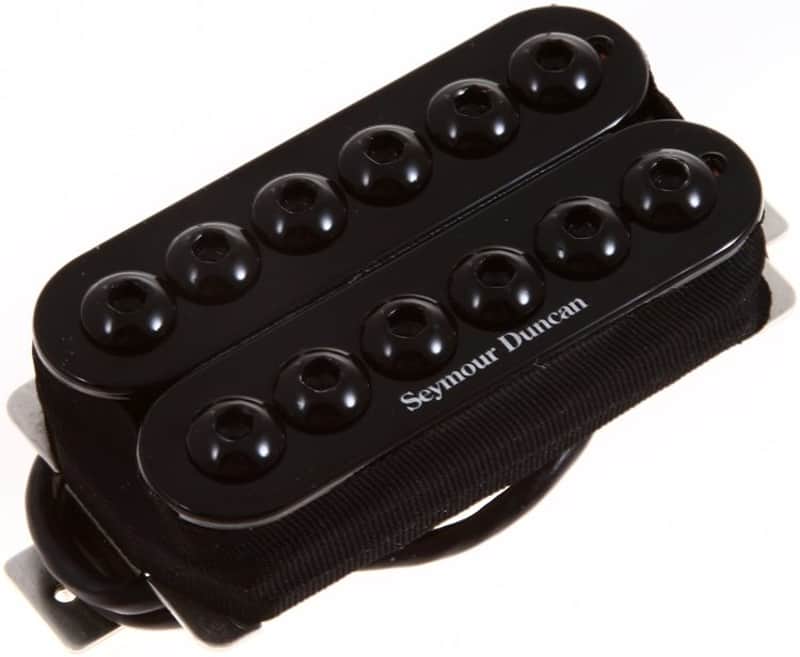

The Seymour Duncan SH-8 Invader Bridge Pickup is a passive high-output humbucker that transforms your guitar into a heavy-sounding beast with the thickest, deepest low-end response of any passive pickup Seymour Duncan makes. Featuring specially overwound coils, three large ceramic magnets, and striking oversized metal oxide pole pieces, the Invader delivers scorching tones with massive depth and articulation that remain well-defined even in extreme down-tuned applications. Whether you're a professional metal guitarist or an intermediate player seeking crushing tone, the Invader's near-subsonic bass response and crunchy treble create a full-throttle sound that redefines what your guitar is capable of.
Product Overview
The Invader's revolutionary design combines specially overwound coils with three large ceramic bar magnets and unique oversized metal oxide pole pieces that expand the overall magnetic field and widen the frequency spectrum. This innovative construction makes every note sound rich and massive, with 16.6K DC resistance delivering scorching output levels while maintaining exceptional clarity. The uncovered design showcases the intimidating black metal oxide poles that aren't just for looks—they're engineered to produce an expansive magnetic field that captures more harmonic content across an extra-wide frequency range.
Chords played through the Invader sound almost subsonic in lower tunings, creating a thunderous foundation that balances perfectly with the crunchy treble to keep everything well-defined and articulate. The ceramic magnets add depth and clarity to the massive output, while the oversized hex caps deliver smooth string-to-string balance for even response across all six strings. A nickel-silver bottom plate adds extra volume and brightness, enhancing the pickup's presence in dense mixes and ensuring lead tones cut through with authority.
Hand-built in Seymour Duncan's Santa Barbara, California factory, each Invader undergoes vacuum wax potting for squeal-free performance at extreme gain levels. The 4-conductor plus shield wiring provides versatile installation options including coil-splitting, parallel wiring, and series/parallel switching for tonal flexibility. Available in 6, 7, and 8-string configurations with passive and active mount options, the Invader adapts to modern extended-range instruments and aggressive playing styles.
Ideal For
- Metal and extreme metal players requiring the deepest low-end response possible
- Guitarists who downtune to drop C, drop B, drop A, and lower tunings
- Heavy rock players seeking massive, thick tone with articulate treble definition
- Studio recording artists capturing subsonic rhythm tones with clarity
- Seven and eight-string players needing pickup options for extended-range instruments
Key Features
Oversized Metal Oxide Pole Pieces
The Invader's striking oversized metal oxide poles aren't just visually intimidating—they expand the magnetic field and widen the frequency spectrum significantly. This unique design captures more harmonic content and delivers the rich, massive tone that makes the Invader legendary among high-gain players.
Triple Ceramic Magnet Configuration
Three large ceramic bar magnets generate the deepest, thickest low-end response of any passive Seymour Duncan pickup. These powerful magnets deliver near-subsonic bass that sounds massive in down-tuned applications while adding depth and clarity to prevent muddy, undefined tone.
Specially Overwound Coils
The hot overwound coils produce 16.6K DC resistance for scorching output with plenty of depth and articulation. This custom winding delivers full-throttle gain without sacrificing definition, ensuring complex riffs stay articulate and lead tones sustain with vocal-like quality.
Nickel-Silver Bottom Plate
The nickel-silver bottom plate adds extra volume and brightness to the Invader's already powerful voice, helping lead tones cut through dense mixes and enhancing overall presence. This premium component contributes to the pickup's professional-grade performance and tonal complexity.
4-Conductor Plus Shield Wiring
The included 4-conductor shielded cable enables multiple wiring configurations including coil-splitting for single-coil tones, parallel wiring for brighter response, and phase reversal options. Vacuum wax potting ensures microphonic-free operation even at extreme gain and volume levels.
What's Included
- Seymour Duncan SH-8 Invader Bridge Pickup (Model 11102-31-B)
- 4-conductor plus shield lead wire
- Mounting screws and springs
- Installation and wiring diagram
- Seymour Duncan warranty information
Technical Specifications
| Specification | Details |
|---|---|
| Type | Humbucker |
| Position | Bridge |
| Active/Passive | Passive |
| Magnet Material | Ceramic (Triple Bar) |
| Cable | 4-conductor plus shield |
| DC Resistance | 16.6K |
| Pole Pieces | Oversized Metal Oxide |
| Bottom Plate | Nickel Silver |
| Connectivity | Soldered |
| Number of Strings | 6 |
| Covering | Uncovered |
| Color | Black |
| Wax Potted | Yes (Vacuum) |
| Manufacturer Part Number | 11102-31-B |
| Manufacturer | Seymour Duncan (USA) |
| Made In | Santa Barbara, California |
Get Your Hands on This High-Output Pickup Today
Transform your guitar's DNA with the Seymour Duncan SH-8 Invader bridge pickup at No Limit Guitar Co in Idaho Falls. Our expert staff can help you achieve the massive, thick tone you've been seeking and discuss wiring options to maximize this pickup's potential. Contact us today or visit our Idaho Falls guitar store to explore the full range of Seymour Duncan high-output pickups and extended-range options.
